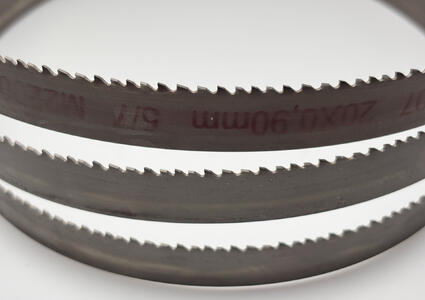

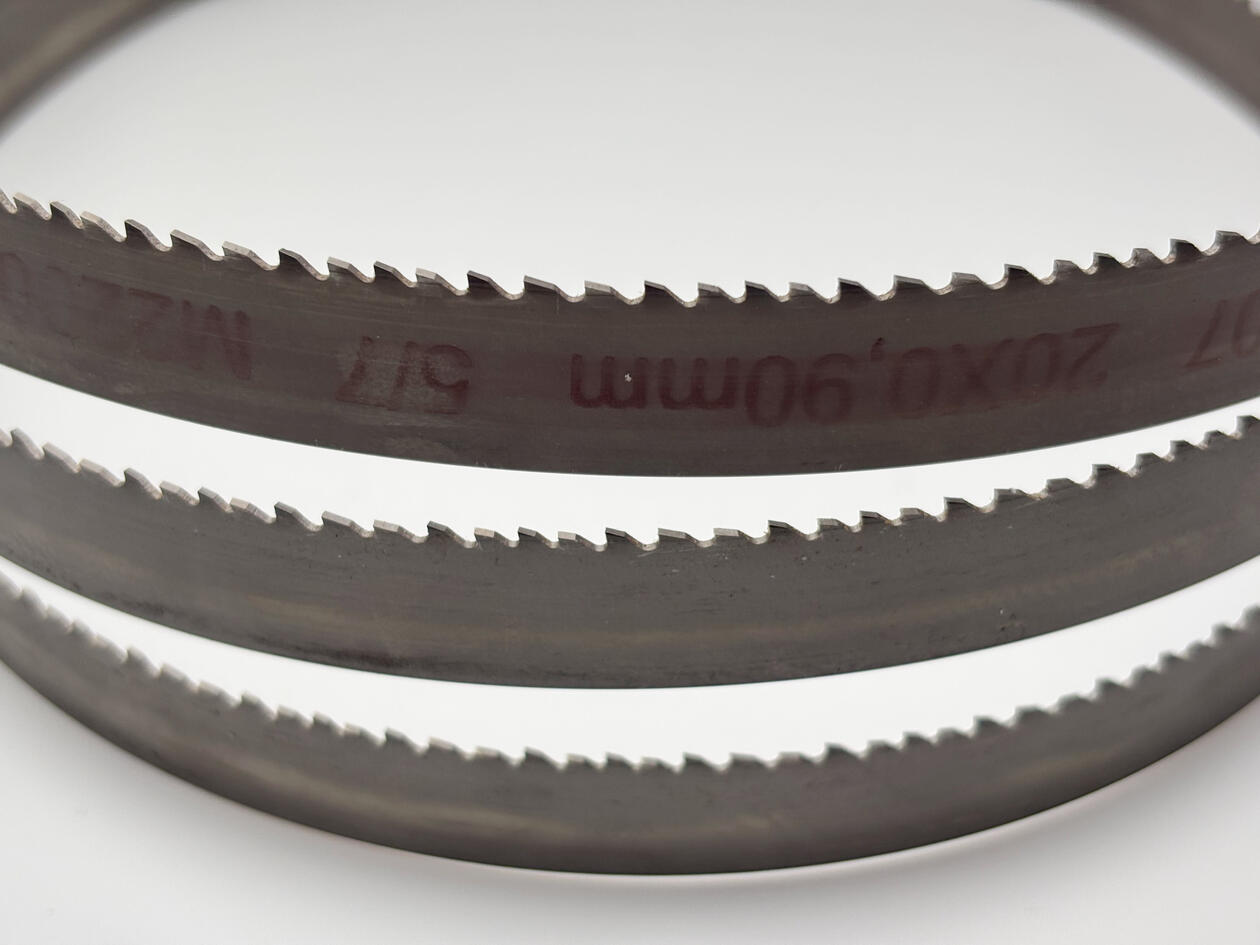

Band saw blade for metal 3110/27x0,9/5/8
SBX
M42 band saw blade for hollow sections and tubes
For industrial and metalworking applications
Resistant to impacts and vibrations

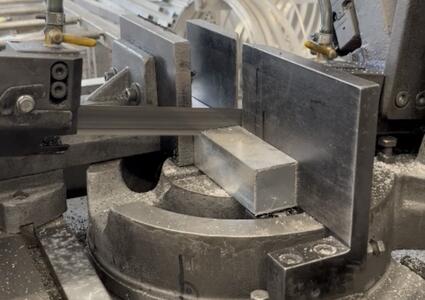

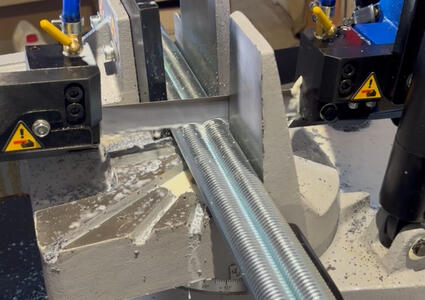

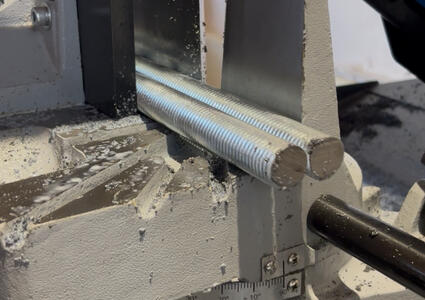

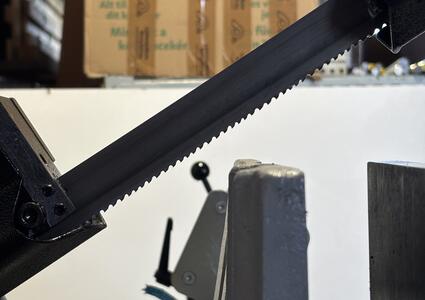

SBX band saw blades are among the top performers for cutting hollow and open sections (tubes, box sections, beams, etc.), and are therefore used in heavy industry, metalworking shops and by manufacturers of steel assemblies and halls. The bi-metal tooth design is robust and effectively resists impacts and vibrations.
- Tooth pitch 3 - 5 mm
- Solid material (20 - 40 mm)
- Sections (wall thickness 6 - 10 mm)
We will weld the band saw blade to the required size and prepare it for dispatch. We ship most orders within 24 hours.
Service life
Thanks to continuous investment in development, DUDRSAW band saw blades have higher productivity and a longer service life
Free delivery
For orders over 80 € incl. VAT
Weld warranty
If your DUDRSAW band saw blade breaks at the weld, we will replace it with a new one
About the SBX ONE range
SBX ONE is a new product in the Dudrsaw portfolio. The new unique geometry and robust tooth make this band saw blade an unbeatable assistant for cutting structural and hollow profiles. The wider set ensures better chip clearance and prevents clamping of open profiles.
SBX ONE is a special band saw blade designed for cutting hollow and open profiles. For professional use in engineering plants, locksmith workshops and steel stockholders. Suitable for cutting tubes, box sections, structural profiles and H and I beams, both individually and in bundles. New robust tooth geometry and a carefully controlled manufacturing process.
Features and benefits
- bimetal construction offers longer blade life and lower cost per cut
- M42 HSS cutting edge provides higher wear resistance
- robust tooth design withstands impacts, vibration and rough handling
- wider set ensures better chip clearance and prevents clamping of open profiles
American band saw blade manufacturer Simonds International places great emphasis on innovation, so you can rely on receiving the most advanced cutting tools from us.
Our band saw blades have variable tooth pitch to reduce vibration, variable tooth set (wavy set) for a smooth and clean cut, variable tooth height to protect the cutting edge and provide smooth and quiet running in the cut, and variable rake angle for optimum chip formation.
DUDRSAW band saw blades are made from top quality Swedish and Japanese steel, are triple tempered, have tooth tips treated to prevent damage, and are finally welded in the state of the art Dudr Saw welding shop on German IDEAL Werk machines.
| SBX | Number of teeth per inch | Price per metre excl. VAT including weld |
|---|---|---|
| 20 x 0,9 mm | 6/9 8/11 4/6 5/8 12/16 | 7,97 € |
| 27 x 0,9 mm | 6/9 3/4 4/6 5/8 8/12 12/16 | 8,33 € |
| 34 x 1,1 mm | 2/3 3/4 4/6 5/8 6/10 8/12 | 10,51 € |
| 41 x 1,3 mm | 2/3 3/4 4/6 | 13,99 € |
| 54 x 1,6 mm | 2/3 3/4 | 19,14 € |
| 67 x 1,6 mm | 2/3 3/4 | 25,82 € |
| Length | 3110 mm |
|---|---|
| Width | 27 x 0,9 mm |
| Tooth pitch | 5/8 |
| Material | Bi-metal, HSS M42 |
| Designed for cutting | Metal |
| Suitable for band saws | |
| Series | SBX |
| Finish | Hardened tooth tips |
